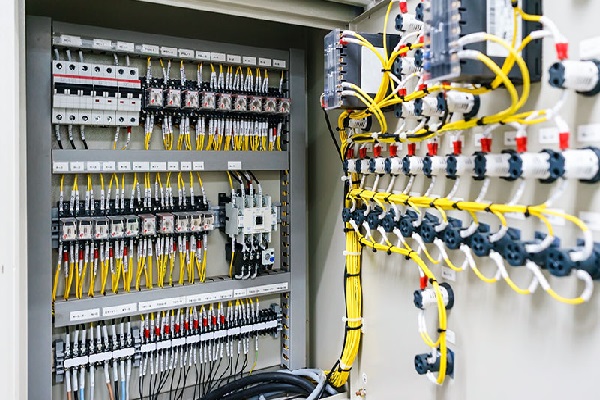

An Instrument and Electrical (I&E) Panel is a specialized, enclosed, and often ruggedized cabinet designed to house both power distribution components and process control/monitoring devices. It serves as a central hub for managing electrical energy (power) and overseeing process parameters (instrumentation) such as temperature, pressure, flow, and level.

Key Functions

• Power Distribution: Distributes electricity from the main source to sub-circuits, motors, and field devices.
• Process Control: Houses devices like PLCs, relays, and controllers that automate machinery and processes.
• Monitoring & Protection: Includes meters (voltmeter, ammeter) to monitor real-time status and protective devices (fuses, breakers) to prevent overloads and short circuits.
• Safety: Acts as a barrier against electrical hazards, protecting personnel and machinery.
