An Inductive Proximity Switch is a non-contact sensor that detects metallic objects by generating a high-frequency electromagnetic field, which creates eddy currents in a target, thereby reducing the field's oscillation and triggering an electronic switch output. These solid-state switches are ideal for position sensing, counting, and speed detection in industrial automation, offering high reliability, no moving parts, and resistance to dirt, dust, and moisture.

How It Works (Principle of Operation)

1. Field Generation: An internal coil connected to an oscillator circuit creates a high-frequency electromagnetic field at the sensor's active face.
2. Eddy Current Induction: When a metal target enters this field, eddy currents are induced in the target.
3. Energy Draw: These eddy currents consume energy from the sensor's oscillating circuit, reducing the oscillation's amplitude (strength).
4. Detection & Switching: A Schmitt trigger circuit detects this drop in oscillation amplitude, confirming the presence of metal, and sends a signal to switch the output on or off.

Key Features & Benefits

• Non-Contact: Detects metal without physical touch, preventing wear and contamination.
• Robust: Solid-state design, insensitive to vibration, dust, and moisture.
• High Accuracy: Offers precise switching and high repeatability.
• Versatile: Available in various shapes (cylindrical, rectangular) and types (shielded/unshielded) for different mounting needs.

Common Applications

• Detecting metal parts on conveyor systems.

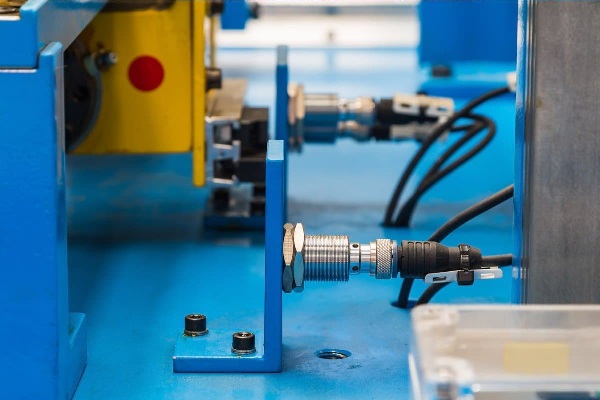

• Position control of machine components.
• Counting items on production lines.
• Sensing valve positions in food & beverage (hygiene-rated models).
